Humanoid Robot Joint Stators

Humanoid robot joint stators and compact AFPM SMC core parts for shoulder, hip, knee, ankle, wrist, hand, and embedded actuator modules with severe axial packaging limits.

Target Buyer:For humanoid robot actuator, joint-module, and robotics hardware teams that need a custom robotics joint stator route instead of adapting bulky radial torque-motor parts.
Start application RFQReview material data

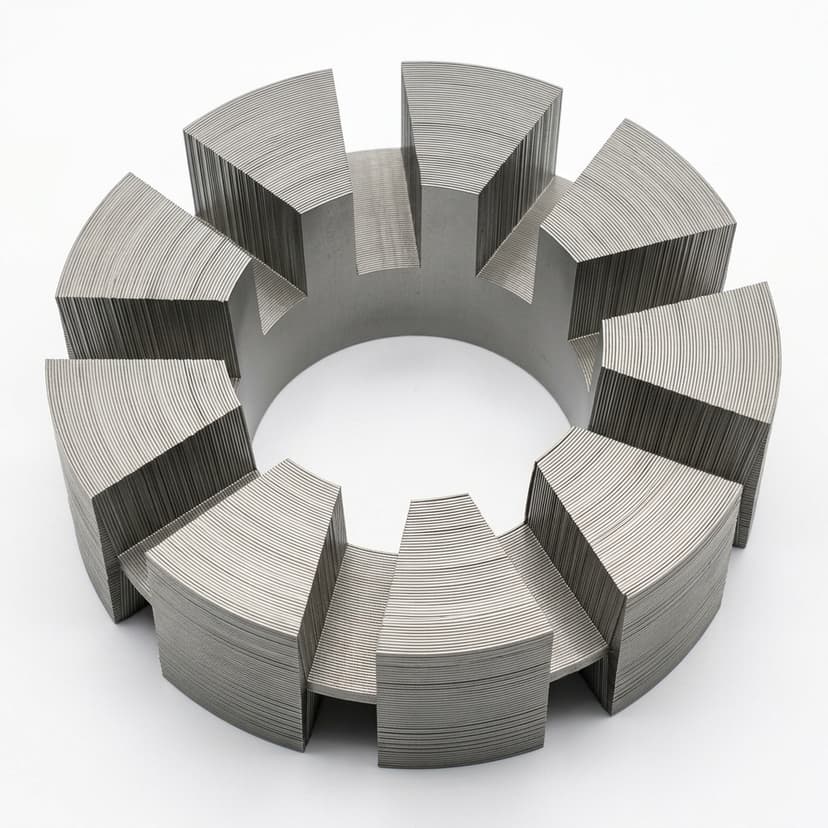

Axial flux robotics joint actuator high quality render

Market Demand

Why This Application Buys Custom AFPM Cores

The sourcing path starts when a buyer's packaging, thermal, or validation problem cannot be solved by a catalog radial motor stack.

Signal

The 2024-2026 humanoid robotics window is pushing joint actuators from lab prototypes toward commercial pilot builds.

Buyer Pressure

Joint teams need thin, high-torque magnetic parts that do not steal space from bearings, dual encoders, harmonic or planetary reducers, cable exits, or thermal paths.

Page Response

The page screens the full joint envelope before treating the robotics joint stator as an isolated magnetic ring.

Signal

Shoulder, hip, knee, wrist, ankle, and hand modules face different torque, shock, inertia, and thermal constraints.

Buyer Pressure

A single catalog radial torque motor geometry rarely fits the mechanical envelope or iteration speed of humanoid R&D.

Page Response

RFQ inputs ask for continuous and peak torque, overload timing, available OD/ID/height, axial tolerance, cooling surface, and prototype milestones.

Signal

AFPM layouts can use dual-stator/single-rotor or single-stator/dual-rotor structures to reduce rotor inertia and axial protrusion.

Buyer Pressure

Buyers need supplier evidence for flatness, air gap, retention, coating, potting, and repeatability before trusting a thin joint module.

Page Response

Validation gates separate target-range screening, functional prototype feedback, and pilot-build transfer.

Design Targets

Torque Density, Axial Package, and Validation Targets

Public target ranges are useful only when the buyer ties them to a baseline design, operating condition, and release evidence.

Thin joint envelope and reduced axial protrusion

Planning Signal

Use a flat AFPM stator package when the shoulder, hip, knee, ankle, wrist, or hand joint cannot accept the long cylinder created by a radial frameless motor plus reducer.

Evidence to Request

Joint CAD envelope, stack-height comparison, OD/ID/axial-height table, bearing and encoder clearance, cable exit model, and actuator housing drawing.

Up to 50% joint-volume reduction target

Planning Signal

Treat the 50% figure as a module-level design target that depends on reducer, bearing, rotor, stator, cooling, cable, and housing co-design.

Evidence to Request

Baseline radial-motor module dimensions, AFPM module layout, exploded CAD, mass budget, and buyer-side fit review notes.

15-25 N.m/kg torque-density program target

Planning Signal

Use this range as a robotics actuator screening target, not as a guaranteed public stator specification without motor-level test conditions.

Evidence to Request

Motor mass definition, active-material mass, continuous and peak torque test method, duty cycle, thermal limit, and sample ID.

300-580 N.m burst-torque and impact-load window

Planning Signal

Shoulder, hip, and knee modules may need transient torque for running, jumping, recovery, or shock events while thin magnetic features remain mechanically retained.

Evidence to Request

Peak torque duration, shock profile, reducer ratio, mounting method, tooth-root radius, retention feature, potting method, and mechanical validation plan.

40-50% weight-reduction benchmark

Planning Signal

Use SMC stator and short axial architecture when the robot mass budget makes radial-motor stack weight unacceptable.

Evidence to Request

Benchmark motor/reducer mass, AFPM stator/core mass, rotor and housing allocation, material route, density record, and cooling hardware assumption.

Narrow axial tolerance and repeatable air gap

Planning Signal

Robot joint torque ripple, NVH, and control quality are sensitive to stator flatness, tooth height, parallelism, and datum transfer.

Evidence to Request

CMM or 3D scan plan, axial-height CTQ table, flatness and parallelism limits, fixture method, air-gap datum map, and first-article report.

TargetPlanning SignalEvidence to Request
Thin joint envelope and reduced axial protrusionUse a flat AFPM stator package when the shoulder, hip, knee, ankle, wrist, or hand joint cannot accept the long cylinder created by a radial frameless motor plus reducer.Joint CAD envelope, stack-height comparison, OD/ID/axial-height table, bearing and encoder clearance, cable exit model, and actuator housing drawing.
Up to 50% joint-volume reduction targetTreat the 50% figure as a module-level design target that depends on reducer, bearing, rotor, stator, cooling, cable, and housing co-design.Baseline radial-motor module dimensions, AFPM module layout, exploded CAD, mass budget, and buyer-side fit review notes.
15-25 N.m/kg torque-density program targetUse this range as a robotics actuator screening target, not as a guaranteed public stator specification without motor-level test conditions.Motor mass definition, active-material mass, continuous and peak torque test method, duty cycle, thermal limit, and sample ID.
300-580 N.m burst-torque and impact-load windowShoulder, hip, and knee modules may need transient torque for running, jumping, recovery, or shock events while thin magnetic features remain mechanically retained.Peak torque duration, shock profile, reducer ratio, mounting method, tooth-root radius, retention feature, potting method, and mechanical validation plan.
40-50% weight-reduction benchmarkUse SMC stator and short axial architecture when the robot mass budget makes radial-motor stack weight unacceptable.Benchmark motor/reducer mass, AFPM stator/core mass, rotor and housing allocation, material route, density record, and cooling hardware assumption.
Narrow axial tolerance and repeatable air gapRobot joint torque ripple, NVH, and control quality are sensitive to stator flatness, tooth height, parallelism, and datum transfer.CMM or 3D scan plan, axial-height CTQ table, flatness and parallelism limits, fixture method, air-gap datum map, and first-article report.

Solution Highlights

  • Flat-disc AFPM stator route for robot joints that need a short axial package instead of a long radial motor and reducer cylinder
  • SMC stator geometry planning for 15-25 N.m/kg torque-density programs and 300-580 N.m burst-torque joint targets, subject to buyer validation
  • Joint-volume reduction target up to 50% at the actuator module level when the motor, reducer, bearing, encoder, cable exit, and housing are co-designed
  • Narrow axial-tolerance, air-gap, flatness, coating, potting, and retention evidence for impact-loaded humanoid joints
  • Dual-stator/single-rotor or single-stator/dual-rotor package discussion to reduce rotor inertia and avoid axial protrusion

Common Use Cases

  • Humanoid shoulder, hip, knee, elbow, wrist, ankle, and hand joints
  • Dexterous gripper actuators
  • Compact quasi-direct-drive modules
  • Bionic joint planes where axial protrusion interferes with motion envelope
  • Robot R&D programs moving from lab prototype to repeatable pilot builds

Application Fit

Buyer Decision Map

Map the application constraint to the engineering response before the project becomes a tooling quote.

Joint envelope

Can the stator fit inside the shoulder, hip, knee, elbow, wrist, ankle, or hand module without adding axial bulk?

Screen OD, ID, axial height, cable exit, bearing clearance, reducer length, encoder stack, air-gap datum, and mounting surface together instead of quoting the core as an isolated ring.

Peak torque and impact loading

Will thin magnetic features survive repeated acceleration, shock, fall recovery, and transient 300-580 N.m joint-level torque events?

Review tooth thickness, root radius, green strength, coating, potting, holder retention, sample handling, and mechanical validation before prototype tooling.

Winding and thermal path

Can the core support high slot fill, fast heat removal, and repeatable assembly in compact actuator builds?

Align tooth geometry, winding access, insulation coating, Hi-pot scope, potting strategy, and conduction path before freezing the prototype.

Low inertia and control response

Can the joint respond quickly without a heavy rotating stack or uncontrolled backlash?

Compare dual-stator/single-rotor and single-stator/dual-rotor layouts against rotor inertia, reducer ratio, encoder datum, control-loop assumptions, and module-level backlash limits.

Integration Boundaries

Scope Boundaries Before Prototype Release

Separate component manufacturing support from the buyer-owned actuator, propulsion, vehicle, or control-system design.

Interface Area

Stator core vs complete actuator module

Buyer Question

Are we sourcing the magnetic stator/core, a winding-ready stator, or a complete robot joint actuator?

Release Boundary

This page covers SMC core and stator manufacturing support. Final actuator design, reducer selection, bearings, rotor, housing, and control performance remain buyer-side unless separately scoped.

Interface Area

Dual absolute encoder and torque feedback

Buyer Question

Can the stator supplier support backlash-free torque feedback requirements?

Release Boundary

The supplier can review datum, axial stack, encoder clearance, and assembly repeatability. Encoder selection, calibration, control loop, and backlash compensation remain the actuator designer responsibility.

Interface Area

Harmonic or planetary reducer interface

Buyer Question

Does the flat AFPM package remove reducer integration risk?

Release Boundary

No. The stator package can reduce axial protrusion, but reducer backlash, mounting stiffness, bearing load, lubrication, and shock behavior must be validated at the joint module level.

Interface Area

Thermal path, winding, coating, and potting

Buyer Question

Can a thin joint stator handle high slot fill and repeated peak events?

Release Boundary

Quote pressed core, coating, winding clearance, potting, encapsulation, thermal interface, and Hi-pot evidence as separate scope items so heat removal and insulation risks are visible before tooling.

Interface Area

NDA, CAD ownership, and pilot build transfer

Buyer Question

Can a humanoid program discuss joint geometry without losing IP control?

Release Boundary

Use non-sensitive envelope screening first, then controlled STEP/DXF/PDF files under buyer NDA. Public page ranges are planning language, not disclosure of buyer motor IP.

Implementation Focus

  • Axial stack height, air-gap datum, flatness, parallelism, encoder clearance, and mounting face control inside a narrow skeletal envelope
  • Joint-level targets for 15-25 N.m/kg torque density, 300-580 N.m burst torque, low rotor inertia, and fast response without treating public ranges as guaranteed part specs
  • SMC tooth geometry, density, coating, winding access, potting, and mechanical retention for repeated shock and peak torque events
  • Dual-stator/single-rotor or single-stator/dual-rotor layout discussion against bearing, reducer, cable exit, and thermal path constraints
  • Dual absolute encoder and backlash-free torque feedback boundary: datum and clearance support from the stator supplier, final control loop owned by the actuator designer
  • Manufacturing path from lab sample to pilot builds with revision control, CMM/3D scan, density checks, coating records, and sample traceability

Application Evaluation Matrix

Joint-volume reduction target

Typical Range

Up to 50% module-level reduction only when motor, reducer, bearing, encoder, cable, cooling, and housing layout support it

Buyer Relevance

Humanoid joints often fail because axial protrusion interferes with the robot motion envelope.

Torque-density target

Typical Range

15-25 N.m/kg motor-level planning target, tied to mass definition and test condition

Buyer Relevance

Shoulder, hip, knee, and ankle modules need high torque in a small skeletal volume.

Peak burst torque

Typical Range

300-580 N.m joint-level target where reducer ratio, duty cycle, shock case, and cooling are defined

Buyer Relevance

Running, jumping, fall recovery, and impact events demand transient torque beyond steady walking loads.

Weight-reduction benchmark

Typical Range

40-50% target versus a defined radial motor plus reducer baseline, not a standalone core guarantee

Buyer Relevance

Robot mass compounds across repeated joints, so every actuator benchmark must state the baseline clearly.

Axial tolerance and air-gap evidence

Typical Range

Flatness, parallelism, tooth height, and air-gap datum by buyer drawing and CMM/3D scan plan

Buyer Relevance

Torque ripple, acoustic behavior, and control quality depend on repeatable geometry.

Impact-resistant retention

Typical Range

Holder, carrier, coating, potting, tooth-root radius, pull/vibration scope, and shock case by project

Buyer Relevance

Thin high-torque joints need mechanical proof, not only magnetic feasibility.

Evaluation MetricTypical RangeBuyer Relevance
Joint-volume reduction targetUp to 50% module-level reduction only when motor, reducer, bearing, encoder, cable, cooling, and housing layout support itHumanoid joints often fail because axial protrusion interferes with the robot motion envelope.
Torque-density target15-25 N.m/kg motor-level planning target, tied to mass definition and test conditionShoulder, hip, knee, and ankle modules need high torque in a small skeletal volume.
Peak burst torque300-580 N.m joint-level target where reducer ratio, duty cycle, shock case, and cooling are definedRunning, jumping, fall recovery, and impact events demand transient torque beyond steady walking loads.
Weight-reduction benchmark40-50% target versus a defined radial motor plus reducer baseline, not a standalone core guaranteeRobot mass compounds across repeated joints, so every actuator benchmark must state the baseline clearly.
Axial tolerance and air-gap evidenceFlatness, parallelism, tooth height, and air-gap datum by buyer drawing and CMM/3D scan planTorque ripple, acoustic behavior, and control quality depend on repeatable geometry.
Impact-resistant retentionHolder, carrier, coating, potting, tooth-root radius, pull/vibration scope, and shock case by projectThin high-torque joints need mechanical proof, not only magnetic feasibility.

Validation

Validation Plan Before Tooling

Quality controls

Envelope confirmation

Evidence to Prepare

Joint CAD envelope, stator OD/ID/height, mounting interface, reducer envelope, air gap, winding access, cable exit, bearing stack, and encoder clearance.

Acceptance Focus

Prevents a manufacturable core from becoming unusable inside the complete actuator module.

Design-target review

Evidence to Prepare

Target 15-25 N.m/kg torque density, 300-580 N.m peak torque if applicable, 40-50% weight-reduction benchmark, and up to 50% volume-reduction assumption.

Acceptance Focus

Keeps public robotics target ranges tied to buyer-side baseline, mass definition, torque test method, and actuator geometry.

Functional prototype

Evidence to Prepare

Dimensional report, fit check, torque/speed test context, impact-load assumptions, thermal path notes, winding feedback, and assembly feedback.

Acceptance Focus

Validates the magnetic part against joint-level torque density and temperature behavior.

Pilot build transfer

Evidence to Prepare

Revision history, CMM/3D scan plan, inspection plan, coating/insulation controls, density record, packaging, sample IDs, and repeatability notes.

Acceptance Focus

Supports robot build schedules where many identical joints must behave consistently.

GateEvidence to PrepareAcceptance Focus
Envelope confirmationJoint CAD envelope, stator OD/ID/height, mounting interface, reducer envelope, air gap, winding access, cable exit, bearing stack, and encoder clearance.Prevents a manufacturable core from becoming unusable inside the complete actuator module.
Design-target reviewTarget 15-25 N.m/kg torque density, 300-580 N.m peak torque if applicable, 40-50% weight-reduction benchmark, and up to 50% volume-reduction assumption.Keeps public robotics target ranges tied to buyer-side baseline, mass definition, torque test method, and actuator geometry.
Functional prototypeDimensional report, fit check, torque/speed test context, impact-load assumptions, thermal path notes, winding feedback, and assembly feedback.Validates the magnetic part against joint-level torque density and temperature behavior.
Pilot build transferRevision history, CMM/3D scan plan, inspection plan, coating/insulation controls, density record, packaging, sample IDs, and repeatability notes.Supports robot build schedules where many identical joints must behave consistently.

Evidence Pack

Audit-Ready Proof Package

For application programs, the strongest proof is a document-led package that connects the operating point, core geometry, validation condition, and supplier release files.

Download templatesQuality controlsRequest evidence scope

Can the robotics joint stator target be connected to the complete actuator envelope?

Evidence to Prepare

Joint CAD envelope, OD/ID/height table, reducer and bearing stack, encoder clearance, cable exit, mounting datum, revision ID, and NDA status.

Acceptance Focus

Prevents a compact stator sample from passing inspection while the complete shoulder, hip, knee, wrist, or hand module still fails packaging.

Can 15-25 N.m/kg, 300-580 N.m, 40-50% weight, and 50% volume targets be audited against a defined baseline?

Evidence to Prepare

Baseline radial motor and reducer package, motor mass definition, torque test condition, duty cycle, thermal limit, active-material mass, and sample ID.

Acceptance Focus

Turns attractive humanoid actuator numbers into a buyer-verifiable comparison instead of an unsupported public promise.

Can narrow axial tolerance and air-gap repeatability be proven before pilot builds?

Evidence to Prepare

CMM/3D scan record, flatness and parallelism report, axial-height CTQ table, datum fixture method, tooth-height checks, and first-article approval notes.

Acceptance Focus

Supports low-noise, high-torque joint control where small axial errors can become torque ripple, NVH, or assembly rejection.

Can shock, impact, and peak-torque retention risks be reviewed before tooling release?

Evidence to Prepare

Impact-load assumptions, tooth-root radius review, green-strength notes, holder or carrier drawing, potting route, coating map, pull/vibration scope, and visual crack criteria.

Acceptance Focus

Reduces the chance that thin SMC features survive bench handling but fail under robot fall recovery, acceleration, or repeated burst-torque events.

Can encoder, reducer, winding, thermal, and IP boundaries be separated in the RFQ?

Evidence to Prepare

Scope matrix for stator core, winding-ready part, holder, potting, encoder datum, reducer interface, housing, validation files, and buyer-owned control logic.

Acceptance Focus

Lets sourcing, robotics engineering, and supplier quality compare quotes without confusing component manufacturing support with complete actuator responsibility.

Buyer CheckpointEvidence to PrepareAcceptance Focus
Can the robotics joint stator target be connected to the complete actuator envelope?Joint CAD envelope, OD/ID/height table, reducer and bearing stack, encoder clearance, cable exit, mounting datum, revision ID, and NDA status.Prevents a compact stator sample from passing inspection while the complete shoulder, hip, knee, wrist, or hand module still fails packaging.
Can 15-25 N.m/kg, 300-580 N.m, 40-50% weight, and 50% volume targets be audited against a defined baseline?Baseline radial motor and reducer package, motor mass definition, torque test condition, duty cycle, thermal limit, active-material mass, and sample ID.Turns attractive humanoid actuator numbers into a buyer-verifiable comparison instead of an unsupported public promise.
Can narrow axial tolerance and air-gap repeatability be proven before pilot builds?CMM/3D scan record, flatness and parallelism report, axial-height CTQ table, datum fixture method, tooth-height checks, and first-article approval notes.Supports low-noise, high-torque joint control where small axial errors can become torque ripple, NVH, or assembly rejection.
Can shock, impact, and peak-torque retention risks be reviewed before tooling release?Impact-load assumptions, tooth-root radius review, green-strength notes, holder or carrier drawing, potting route, coating map, pull/vibration scope, and visual crack criteria.Reduces the chance that thin SMC features survive bench handling but fail under robot fall recovery, acceleration, or repeated burst-torque events.
Can encoder, reducer, winding, thermal, and IP boundaries be separated in the RFQ?Scope matrix for stator core, winding-ready part, holder, potting, encoder datum, reducer interface, housing, validation files, and buyer-owned control logic.Lets sourcing, robotics engineering, and supplier quality compare quotes without confusing component manufacturing support with complete actuator responsibility.
Buyer Inputs That Unlock the Review
  • Complete joint envelope, target joint axis, available OD, ID, axial height, cable exit, bearing, reducer, encoder, and housing constraints
  • Continuous torque, peak or burst torque, target 300-580 N.m window if applicable, speed range, overload duration, impact load case, and duty cycle
  • Target torque density or weight-reduction benchmark, including whether the program is comparing against a radial frameless motor plus harmonic or planetary reducer
  • Controlled stator/core CAD, 2D drawing, datum scheme, axial tolerance, flatness, air-gap faces, coating area, and winding or potting assumptions
Release Boundary

Any released claim should be tied to the buyer drawing, sample ID, material batch, inspection method, and agreed test condition instead of a generic marketing statement.

RFQ Inputs

RFQ Signals for This Application

Send RFQ

Joint module envelope

Why It Matters

Humanoid actuator teams usually run out of packaging room before they run out of electromagnetic concepts.

Useful Example

Joint axis, available OD, ID, axial height, mounting face, bearing, reducer, dual-encoder clearance, cable exit, and housing constraints.

Torque, speed, and duty cycle

Why It Matters

Peak torque alone is not enough to judge core geometry, material route, or thermal risk.

Useful Example

Continuous torque, peak or burst torque, 300-580 N.m target window if applicable, speed range, duty cycle, overload duration, and thermal limit.

Weight and volume benchmark

Why It Matters

Claims such as 40-50% weight reduction or 50% joint-volume reduction are only meaningful against a defined baseline module.

Useful Example

Current radial motor and reducer mass, axial length, motor diameter, reducer ratio, target AFPM stack, cooling hardware, and housing allowance.

Tolerance and inspection package

Why It Matters

Low-noise torque control depends on repeatable air gap and axial geometry, not only magnetic material selection.

Useful Example

Flatness, parallelism, tooth height, air-gap datum, CMM/3D scan format, CTQ dimensions, density or weight check, and sample ID traceability.

Prototype build schedule

Why It Matters

Robotics teams often need staged iterations, not one final production quote.

Useful Example

Sample quantity, robot build milestone, expected design revision count, pilot quantity, and annual forecast.

InputWhy It MattersUseful Example
Joint module envelopeHumanoid actuator teams usually run out of packaging room before they run out of electromagnetic concepts.Joint axis, available OD, ID, axial height, mounting face, bearing, reducer, dual-encoder clearance, cable exit, and housing constraints.
Torque, speed, and duty cyclePeak torque alone is not enough to judge core geometry, material route, or thermal risk.Continuous torque, peak or burst torque, 300-580 N.m target window if applicable, speed range, duty cycle, overload duration, and thermal limit.
Weight and volume benchmarkClaims such as 40-50% weight reduction or 50% joint-volume reduction are only meaningful against a defined baseline module.Current radial motor and reducer mass, axial length, motor diameter, reducer ratio, target AFPM stack, cooling hardware, and housing allowance.
Tolerance and inspection packageLow-noise torque control depends on repeatable air gap and axial geometry, not only magnetic material selection.Flatness, parallelism, tooth height, air-gap datum, CMM/3D scan format, CTQ dimensions, density or weight check, and sample ID traceability.
Prototype build scheduleRobotics teams often need staged iterations, not one final production quote.Sample quantity, robot build milestone, expected design revision count, pilot quantity, and annual forecast.

RFQ Preparation Checklist

  1. Complete joint envelope, target joint axis, available OD, ID, axial height, cable exit, bearing, reducer, encoder, and housing constraints
  2. Continuous torque, peak or burst torque, target 300-580 N.m window if applicable, speed range, overload duration, impact load case, and duty cycle
  3. Target torque density or weight-reduction benchmark, including whether the program is comparing against a radial frameless motor plus harmonic or planetary reducer
  4. Controlled stator/core CAD, 2D drawing, datum scheme, axial tolerance, flatness, air-gap faces, coating area, and winding or potting assumptions
  5. Rotor/stator topology preference: dual-stator/single-rotor, single-stator/dual-rotor, segmented stator, or buyer-owned actuator stack
  6. Thermal path and material requirements: conduction surface, potting boundary, insulation coating, temperature limit, density target, B-H or loss evidence needed
  7. Prototype quantity, expected design revision count, pilot quantity, robot build milestone, annual forecast, destination, NDA status, and report package required

Risk and Mitigation

  • Public torque-density or weight claims are interpreted as guaranteed stator specifications: State the baseline, motor mass definition, torque test condition, duty cycle, thermal limit, and sample ID before using 15-25 N.m/kg, 300-580 N.m, 40-50%, or 50% targets.
  • Magnetic core is designed without winding assembly reality: Review winding access, coating, Hi-pot, potting, slot fill, cable exit, and thermal path with the SMC part before prototype release.
  • A thin stator fits the CAD ring but conflicts with reducer, encoder, or bearing stack: Screen the complete joint module envelope, not only the core OD, ID, and axial height.
  • Air-gap variation creates torque ripple or noisy control: Lock axial-height CTQs, flatness, parallelism, tooth-height inspection, fixture method, and datum transfer before sample approval.
  • Impact loading chips SMC teeth or loosens retention features: Review tooth-root radius, holder or carrier retention, coating, potting, green strength, vibration scope, and shock assumptions before tool release.
  • Encoder and backlash-free control claims exceed supplier scope: Separate stator datum and assembly-repeatability support from buyer-owned encoder selection, reducer backlash, calibration, and control-loop validation.

Visual References for This Application

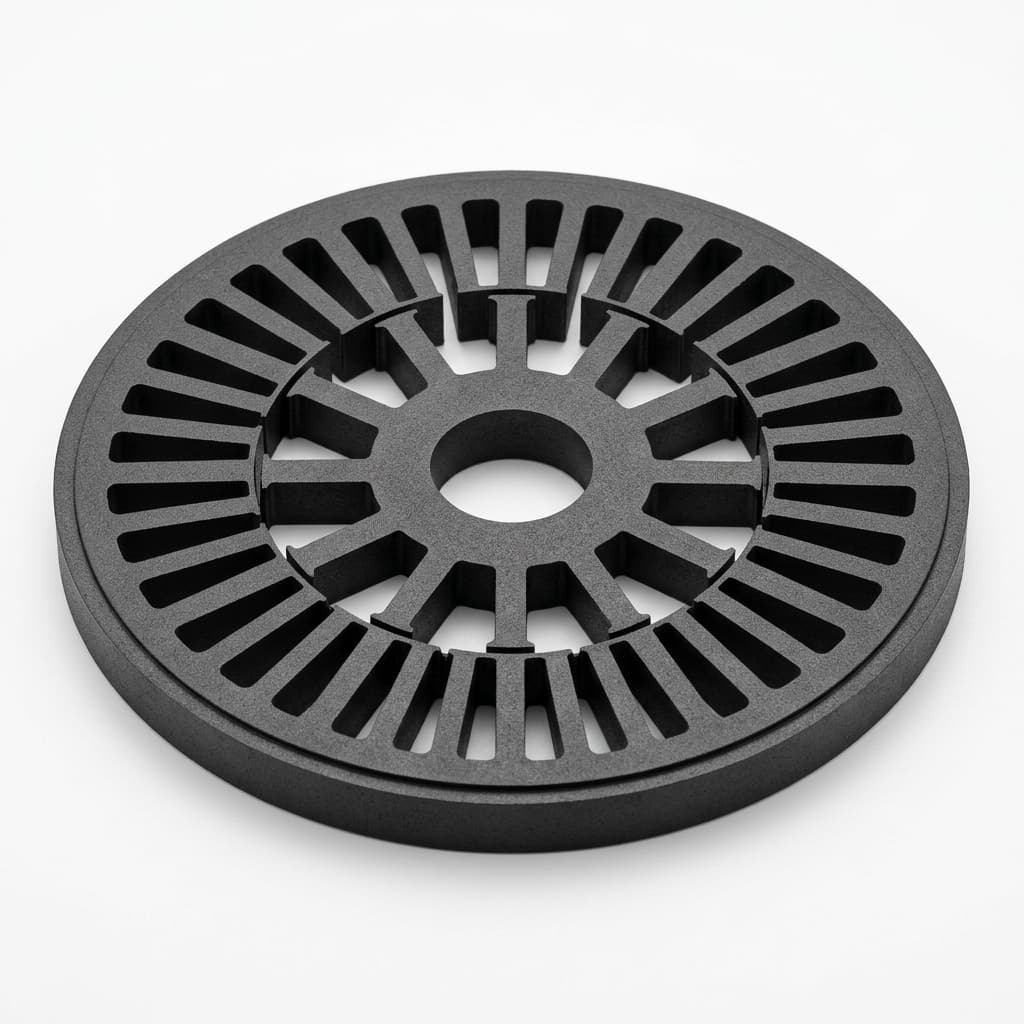

Compact AFPM stator reference for humanoid robotic joints

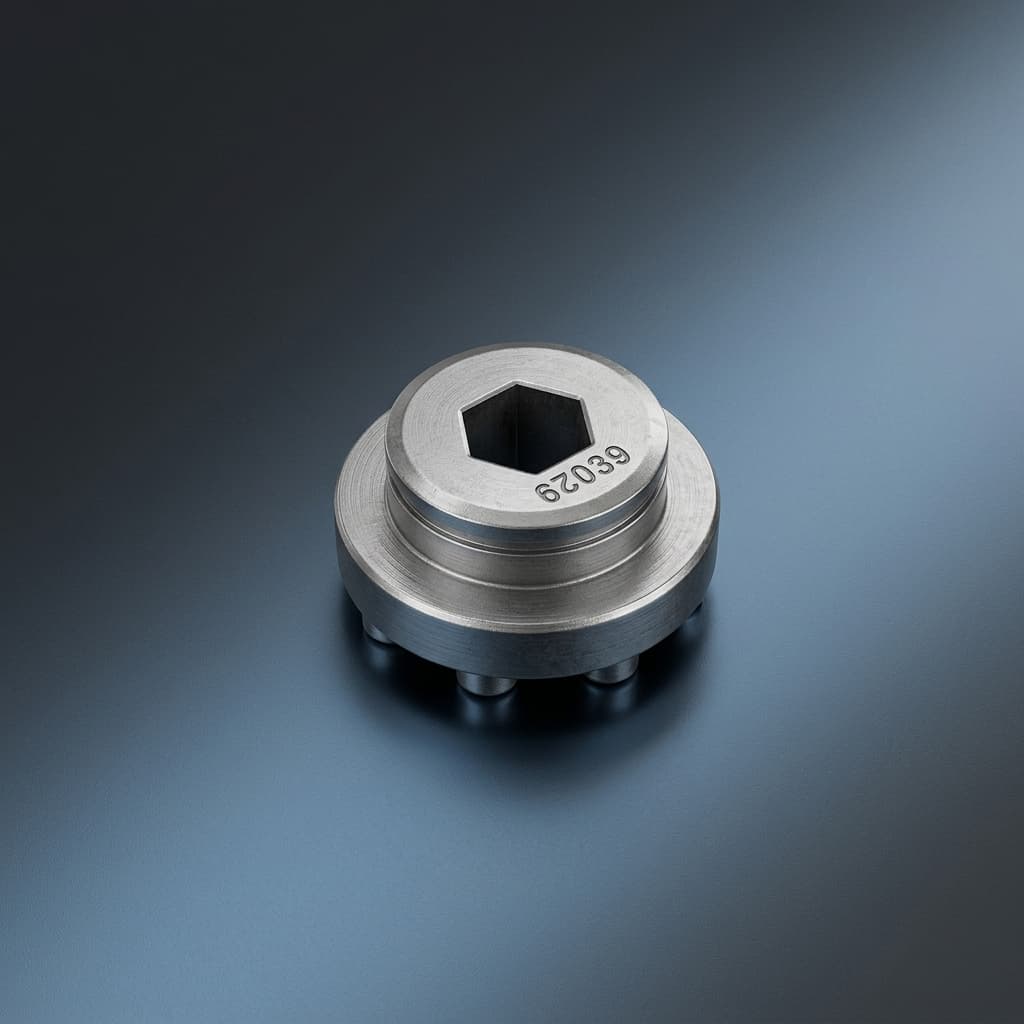

Compact AFPM stator reference for humanoid robotic joints

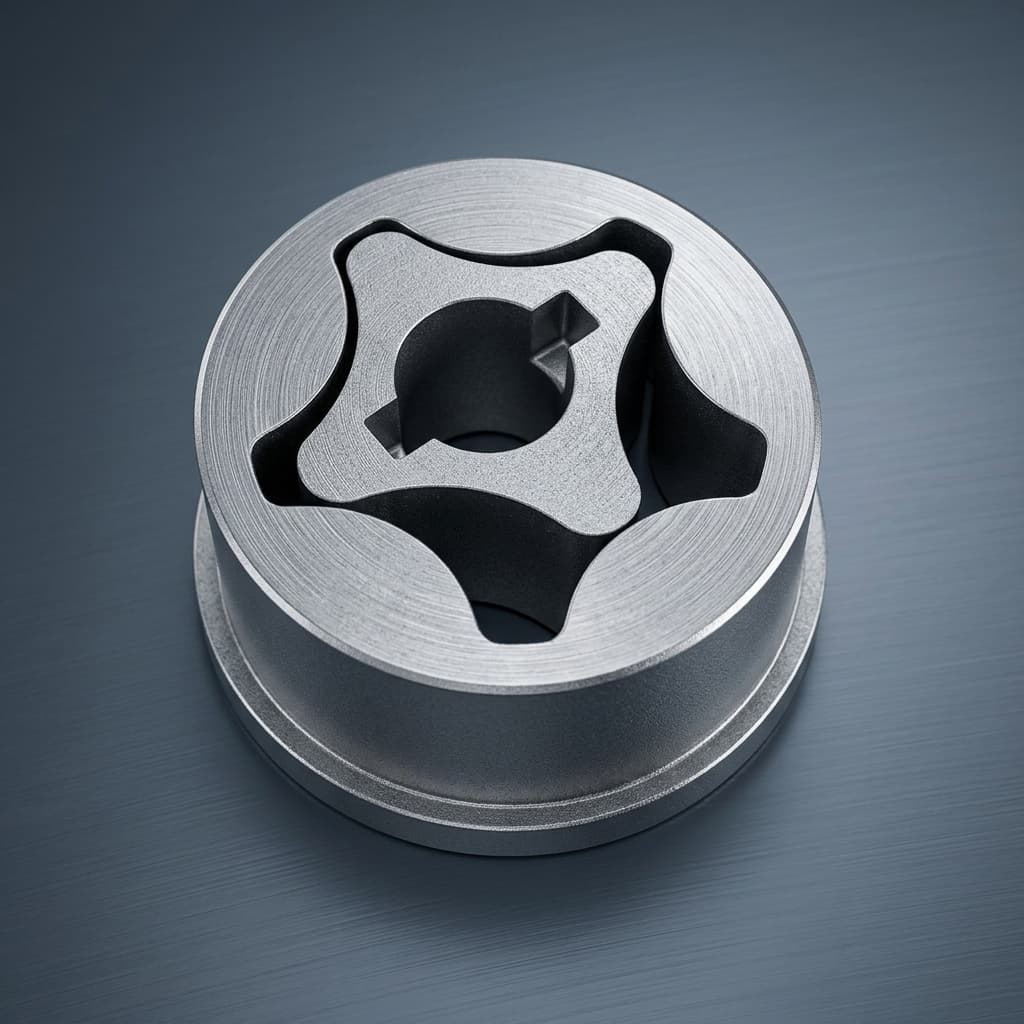

SMC core for robotic dexterity and high torque density
SMC core for robotic dexterity and high torque density

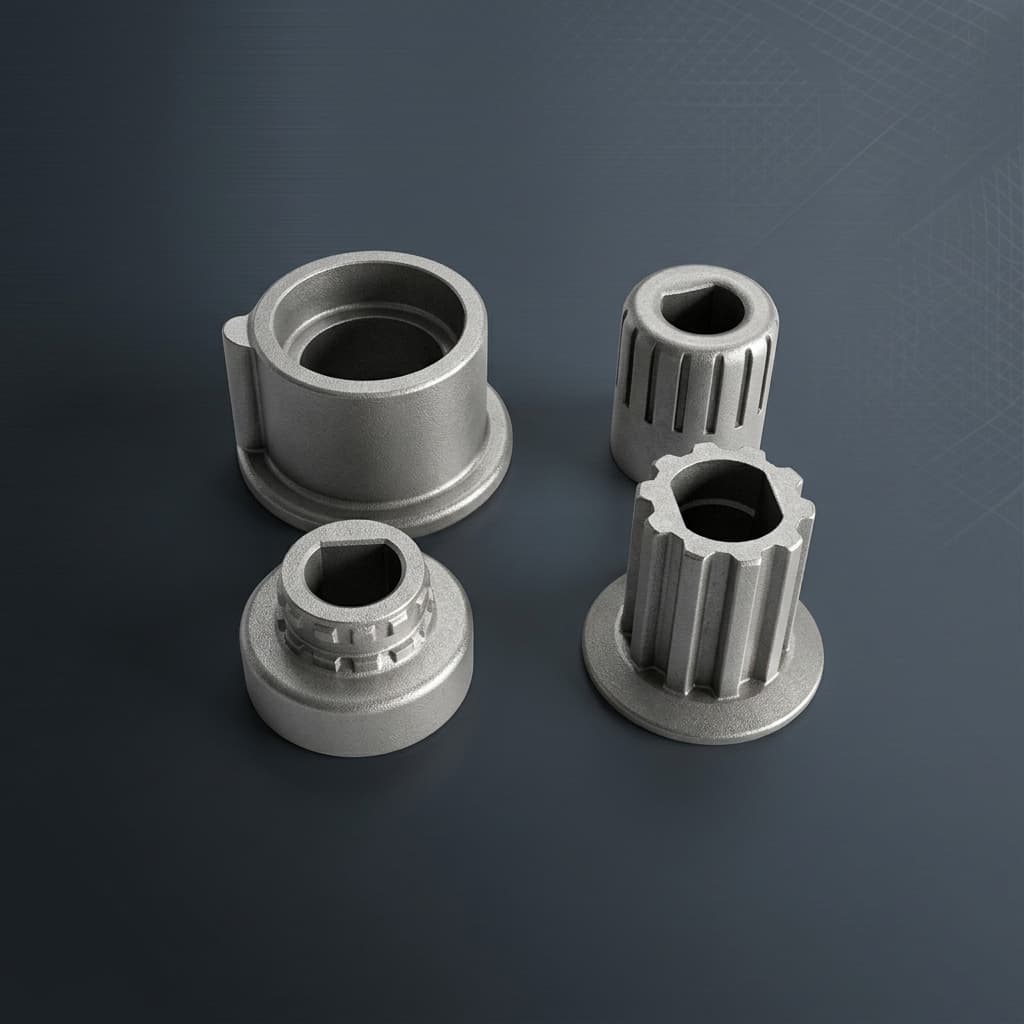

Thin axial flux stator concept for robot joints
Thin axial flux stator concept for robot joints

Buyer FAQ

Can this support small humanoid hand joints?

Yes, if the stator geometry, tooth strength, winding access, and tooling path are feasible. Send the hand or wrist envelope, torque target, axial height, cable exit, and validation expectation first for screening.

Can an AFPM robotics joint stator reduce joint volume by 50%?

It can be a realistic module-level target when the motor, reducer, bearing, encoder, cable, cooling, and housing are co-designed around a flat axial flux package. It should not be treated as a guaranteed standalone core number without a baseline actuator comparison.

Are 15-25 N.m/kg and 300-580 N.m guaranteed specifications?

No. Use them as humanoid actuator planning targets. Final torque density and peak torque depend on buyer motor topology, mass definition, reducer ratio, duty cycle, thermal limit, test method, and sample evidence.

Do you supply a complete robot joint actuator?

The page focuses on SMC core and stator manufacturing support for buyer-side humanoid joint platforms. Complete actuator supply, reducer selection, bearings, rotor, housing, encoders, and control-loop validation should be scoped separately if required.

How do you support narrow axial tolerance for robot joints?

The RFQ should define flatness, parallelism, tooth height, air-gap faces, datum surfaces, and CMM or 3D scan records. These controls help the buyer connect sample geometry to torque ripple, NVH, and assembly repeatability.

Can dual absolute encoder requirements be supported?

We can review stator datum, axial stack, mounting surfaces, and encoder-clearance constraints. Encoder selection, calibration, backlash compensation, and torque-control performance remain part of the buyer actuator system unless separately scoped.

What evidence should be prepared before pilot builds?

Prepare joint CAD, drawing revision, OD/ID/height CTQs, CMM or 3D scan report, density or weight record, coating and Hi-pot scope, retention or potting notes, torque/speed test condition, sample IDs, and repeatability requirements.

Related Resources

  • SMC material data hub
  • Manufacturing & quality controls
  • AFPM SMC Stator
  • Axial Flux Motor Core
  • SMC Stator Segments
  • YASA Segmented Stator Teeth
  • Technology & Materials
  • Manufacturing & Quality
  • Axial Flux Stator Prototyping
  • Contact / RFQ

Inquiry Email

[email protected]

Email app

Attach STEP/DXF/PDF plus frequency, flux density, sample quantity, annual forecast, and destination.

Instant Chat

+8618857971991

Chat on WhatsApp

Direct response from our engineering team.
