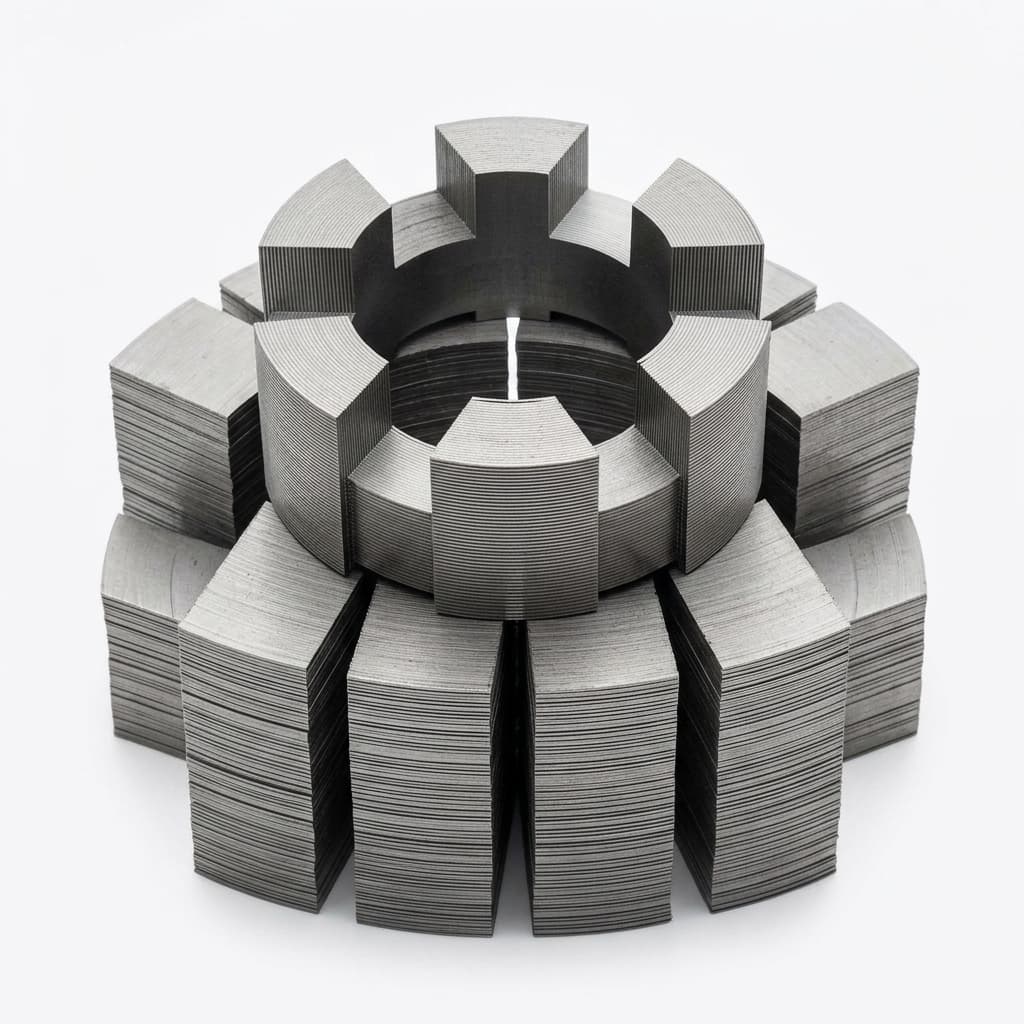

Prototype-to-pilot support for AFPM SMC stators, including STEP/DXF review, DFM feedback, sample scope definition, first article inspection planning, and revision-controlled validation handoff.
Manufacturing Demand
The manufacturing route should be reviewed before sourcing treats the part as a simple machined shape.
Demand Signal
Simulation geometry is ready for first physical stator samples, but production tooling is still too early.
Buyer Pressure
Engineering needs fast learning without locking the wrong air-gap face, tooth geometry, or material route.
Page Response
Split the project into CAD intake, DFM feedback, sample objective lock, first article evidence, and pilot transfer gates.
Demand Signal
Robotics, eVTOL, drone, and startup motor teams need low-MOQ AFPM SMC samples for bench validation.
Buyer Pressure
A quote that only lists unit price and lead time does not tell the buyer what evidence will arrive with the samples.
Page Response
Define sample quantity, CTQs, inspection records, optional B-H or core-loss data, and revision feedback before the PO.
Demand Signal
The stator geometry is confidential or customer-owned, and the supplier is only being asked to manufacture or DFM-review it.
Buyer Pressure
Buyers need NDA-safe communication, controlled drawing access, and a clear OEM boundary before sharing full CAD.
Page Response
Use buyer-owned drawing references, NDA status, manufacturing-only scope, reviewer limits, and change logs as part of RFQ intake.
Evidence Pack
For OEM sourcing reviews, the useful proof is not a generic capability claim. It is a controlled set of files that a buyer can audit before NDA release, sample acceptance, pilot build, or repeat order.
Evidence to Prepare
DFM notes, sample objective, frozen CTQ dimensions, acceptable material substitutes, and prototype-to-pilot decision gate.
Acceptance Focus
Helps engineering teams avoid paying for production tooling before the stator geometry is stable.
Evidence to Prepare
Sample list, dimensional report, density or weight check, visual defect notes, optional magnetic data, and revision-controlled feedback.
Acceptance Focus
Lets the buyer decide whether CAD, material route, or tooling assumptions need revision.
Evidence to Prepare
NDA status, buyer-owned drawing reference, manufacturing-only scope statement, access control note, and revision log.
Acceptance Focus
Protects motor IP while still allowing practical DFM and sourcing work.
Evidence to Prepare
CTQ matrix, drawing revision, sample IDs, FAI report, material/route notes, validation conditions, and pilot transfer recommendation.
Acceptance Focus
Reduces the chance that a prototype passes a bench test but cannot be purchased repeatably.
| Buyer Checkpoint | Evidence to Prepare | Acceptance Focus |
|---|---|---|
| Can the prototype plan separate early geometry learning from pilot-tool assumptions? | DFM notes, sample objective, frozen CTQ dimensions, acceptable material substitutes, and prototype-to-pilot decision gate. | Helps engineering teams avoid paying for production tooling before the stator geometry is stable. |
| Can the supplier provide usable evidence with first samples, not just loose parts? | Sample list, dimensional report, density or weight check, visual defect notes, optional magnetic data, and revision-controlled feedback. | Lets the buyer decide whether CAD, material route, or tooling assumptions need revision. |
| Can confidential AFPM drawings be handled without blurring OEM and ODM boundaries? | NDA status, buyer-owned drawing reference, manufacturing-only scope statement, access control note, and revision log. | Protects motor IP while still allowing practical DFM and sourcing work. |
| Can the supplier make first samples decision-ready for engineering, sourcing, and quality at the same time? | CTQ matrix, drawing revision, sample IDs, FAI report, material/route notes, validation conditions, and pilot transfer recommendation. | Reduces the chance that a prototype passes a bench test but cannot be purchased repeatably. |
Any released claim should be tied to the buyer drawing, sample ID, material batch, inspection method, and agreed test condition instead of a generic marketing statement.
This is prototype planning guidance, not a public guarantee of lead time, certification, equipment list, or performance result. Exact sample route, timeline, testing scope, and controlled records should be confirmed after drawing review or under NDA.
| Parameter | RFQ Planning Range | Engineering Note |
|---|---|---|
| Drawing intake package | STEP or native 3D CAD, DXF when relevant, 2D PDF with tolerances, revision ID, drawing owner, and sensitive-file sharing rule. | A prototype quote is only useful when the supplier can connect geometry, CTQs, IP boundary, and review authority to the same revision. |
| Prototype objective | Geometry feasibility, material comparison, magnetic test coupon, assembly trial, full stator sample, or pilot-intent first article. | The sample route, evidence package, and cost profile change depending on whether the buyer is learning or preparing for pilot release. |
| Sample form and quantity | Coupon, tooth, segment, full annular stator, or staged batch; quantity defined by test plan, destructive testing, and spare requirement. | Low sample counts can be enough for DFM learning, but validation and repeatability usually need more than one piece. |
| Inspection and validation package | FAI dimensions, CTQ report, density or weight check, visual/coating notes, optional Hi-pot, insulation, B-H curve, or core-loss data. | Decision-ready samples should arrive with records that tell the buyer what to revise, accept, or retest. |
| Prototype-to-pilot handoff | Accepted revision, open deviation list, tooling assumption, material route, inspection scope, packaging plan, and pilot-volume forecast. | Pilot sourcing is easier when the prototype learning record already explains what must remain controlled. |
| Confidentiality boundary | Public first-contact summary, NDA-controlled CAD review, named reviewers, file handoff preference, and buyer-owned drawing statement. | AFPM stator geometry is often motor IP, so public-page inquiry needs a clear path before sensitive files move. |
| Program Metric | Typical Range | Procurement Value |
|---|---|---|
| DFM response scope | CAD intake, SMC-specific risk notes, CTQ review, sample route options, and open questions | Early DFM feedback tells engineering whether to revise geometry before spending on samples or tooling. |
| Prototype evidence package | Sample IDs, drawing revision, dimensional report, process notes, visual notes, optional magnetic or insulation data | Decision-ready samples help buyers avoid repeating the same CAD/tooling mistake. |
| Iteration control | Revision log, accepted deviations, rejected assumptions, next-sample objective, and buyer approval gate | Prototype programs often fail when teams cannot tell which CAD or route change created the measured result. |
| Pilot readiness | Accepted prototype revision, tooling assumption, inspection scope, packaging rule, and forecast volume | A clean pilot handoff helps sourcing and supplier quality move beyond one-off sample approval. |
Validation
| Gate | Evidence to Prepare | Acceptance Focus |
|---|---|---|
| NDA-safe CAD intake | Public project summary, NDA status, drawing ownership, revision ID, allowed reviewers, and file handoff preference. | The supplier can review geometry without exposing buyer IP outside the agreed scope. |
| DFM and sample objective lock | SMC manufacturability notes, CTQ list, sample form, quantity, material boundary, acceptance criteria, and requested validation records. | Engineering, sourcing, and quality know what the first samples are intended to prove. |
| First article sample review | Sample IDs, FAI dimensions, density or weight check, visual/coating notes, optional magnetic or insulation data, and deviation list. | The buyer can decide whether to accept, revise CAD, change material route, or run another iteration. |
| Pilot transfer decision | Accepted revision, remaining risks, tooling assumption, pilot volume, inspection plan, packaging method, and change-control rule. | The project is ready for low-volume sourcing discussion without treating learning samples as uncontrolled production parts. |
RFQ Inputs
| Input | Why It Matters | Useful Example |
|---|---|---|
| CAD and ownership package | A controlled drawing baseline keeps DFM, sample records, and buyer IP boundaries tied to the same revision. | STEP/DXF/2D drawing, revision ID, drawing owner, NDA status, allowed reviewers, and preferred file handoff route. |
| Prototype objective and sample quantity | Different objectives require different sample forms, inspection depth, and cost assumptions. | State whether the samples are for DFM learning, material comparison, assembly trial, magnetic validation, or pilot-intent release. |
| Operating and validation conditions | Magnetic, insulation, and thermal evidence is only useful when the test condition matches the buyer decision. | Provide frequency, flux-density target, temperature range, waveform or duty cycle, insulation requirement, and requested reports. |
| CTQ geometry and assembly interfaces | SMC DFM review needs to know which dimensions are fixed and which features may be adjusted. | Flag air-gap faces, flatness, parallelism, segment pitch, bore or OD datum, winding access, and features that cannot change. |
| Pilot and commercial context | Pilot volume, tooling ownership, destination, and packaging change the right prototype-to-pilot handoff plan. | Share target sample date, pilot volume, annual forecast if available, tooling ownership expectation, destination country, and packaging constraints. |
Yes. It is better to run staged iterations than to over-invest in production tooling before the geometry is stable.
A preliminary DFM and sample-scope discussion can start with target operating conditions. Final sample quote and validation scope should be locked after the material target, allowed substitutions, and test conditions are clear.
A STEP file, basic 2D drawing or CTQ list, application, target frequency, temperature range, sample objective, rough quantity, and NDA status are enough for a first structured review.
No. Lead time depends on drawing readiness, sample form, material route, tooling assumptions, inspection scope, validation requirements, and export handling.
The public contact step can use a non-sensitive summary. Detailed CAD review should define NDA status, buyer-owned drawing references, allowed reviewers, file handoff preference, and manufacturing-only scope.
A practical first article package can include sample IDs, drawing revision, FAI dimensions, CTQ checks, density or weight notes, visual/coating observations, optional magnetic or insulation data, and a next-iteration recommendation.
Inquiry Email
Attach STEP/DXF/PDF plus frequency, flux density, sample quantity, annual forecast, and destination.
